Jay Series Sport Hardwall

The Jay Series Sport Hardwall is Jayco’s line of a-frame pop up campers. These units sleep fewer people (up to four) than Jayco’s other pop ups, which is a common theme in a-frame campers. The trade off is that although Jay Series Sport Hardwall campers don’t have the additional sleeping space afforded by pop-out bunks, they stay warmer in the winter and cooler in the summer (with an option air conditioning unit), and there aren’t any soft walls to wear out or leak.

There are currently eight different floor plans in the Jay Series Sport Hardside lineup, some of which include a fully-enclosed, hard-walled bathroom, and others that include cargo decks like the Baja Edition tent trailers.

Jayco Jay Series Sport Hardwall Specifications

 LengthTravel HeightGVWR (lbs)Dry Hitch Weight (lbs)Storage DeckSleeps

12B

Jay Series Sport Hardwall 12B Floor Plan
UKNUKNUKNUKNNo2

12BFD

Jay Series Sport Hardwall 12BFD Floor Plan
22' 4"70-1/4"4,15040563"2

12BMD

Jay Series Sport Hardwall 12BMD Floor Plan
18' 8"61-1/2"3,250230Yes2

12BSB

Jay Series Sport Hardwall 12BSB Floor Plan
18' 8"61-1/4"3,250295Yes2

12H

Jayco Jay Series Sport Hardwall 12H Floor Plan
16' 3"60-1/2"3,250295No3-4

12HFD

Jay Series Sport Hardwall 12HFD Floor Plan
22' 4"70-5/8"4,15038563"3-4

12HMD

Jay Series Sport Hardwall 12HMD Floor Plan
18' 8"61-3/4"3,250220Yes3-4

12HSB

Jay Series Sport Hardwall 12HSB Floor Plan
18' 8"61-1/2"3,250305Yes3-4

Jay Series Sport Hardwall Standard Features

Jay Series Sport camping trailers each come with a number of standard features, such as:

  • A-frame construction
  • 13″ D-range tires
  • TorFlex torsion axle suspension
  • 12V electrical system, incl. 35A converter
  • 2x 20 lb propane tanks
  • Hookup for city water
  • Exterior shower
  • 17 gal fresh water tank
  • 6 gal water heater
  • 2 cf fridge (3-way)
  • Microwave
  • Fully enclosed bathroom (select models)
  • Multimedia stereo system
  • 10,000 BTU heat pump

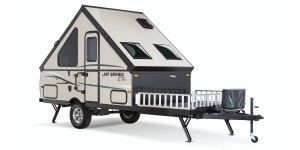

Jay Series Sport Hardwall 12hfd

Jay Series Sport Hardwall Optional Equipment

The Jay Series Sport Hardwall includes one package of options, which is actually mandatory with all models:

  • Customer Value Package
    • Electric brakes
    • Stabilizer jacks
    • Spare tire

In addition to the mandatory Customer Value Package, other options include:

  • Powered roof vent
  • Furnace
  • Awning w/screen room
